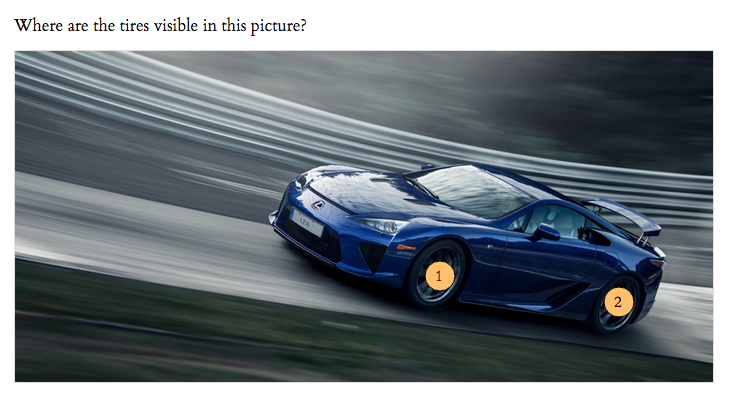

The Select Point part gives students the opportunity to demonstrate their knowledge by selecting an invisibly-defined portion of an image (region on a map, person in a line-up, etc.). Similar to a Hotspot Interaction part, you create the hotspots and the correct answer, but students don’t see the hotspots. They have to create their own select points to submit the answer. The answer is graded as correct if the select points are within or overlaps the correct hotspots.
To add a Select Point part to a problem:
- Go to the problem.
- Select Add part and then select Select Point.
- Specify the number of points that the student can select as answers.
- Specify the number of points that must be correctly placed in order for their response to be considered correct.
- Select Upload image.
- Use the Hotspot toolbar to add, remove, and delete hotspots within the image. The location and size of each hotspot determines an area in which the student's placement of points is considered correct.
- Edit the settings as desired.
- Preview the problem by selecting the Preview tab.
Field | Description |
---|---|
Question | |
Image | Image you want to use |
Hotspot | You can create, move, and delete hotspots (rectangles or ovals) on the image as well as select the correct answer(s). |
No. Answers | Number of points a student can select as answers |
No. Correct | Number of points a student must get correct in order for their answer to be considered correct. |
Hotspot | You can create, move, and delete hotspots (rectangles or ovals) on the image. |
Image alt text | Image alt text for accessibility |
Solution | optional |
Points | optional; defaults to 1. |
