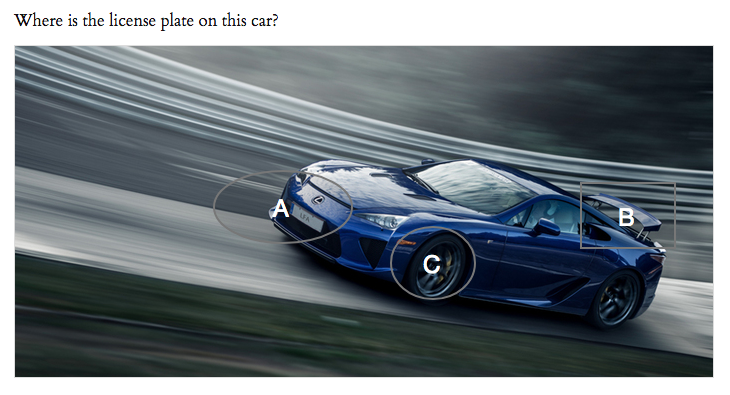

A hotspot is an area on a computer screen that can be selected to activate a function. The Hotspot Interaction part allows students to select one or more hotspots on an image as the possible answer to the question.
To add a Hotspot Interaction part to a problem:
- Go to the problem.
- Select Upload image.
- Use the Hotspot toolbar to add, remove, and delete hotspots within the image.
- Edit the settings as desired.
- Preview the problem by selecting the Preview tab.
| Field | Description |
|---|---|
| Question | |
| Image | Image you want to use |
| Selection Type | Indicates you want a single or multiple hotspots to represent the correct answer |
| Hotspots | You can create, move, and delete hotspots (rectangles or ovals) on the image as well as select the correct answer(s). |
| Image alt text | Image alt text for accessibility |
| Solution | optional |
| Points | optional. Defaults to 1. |
