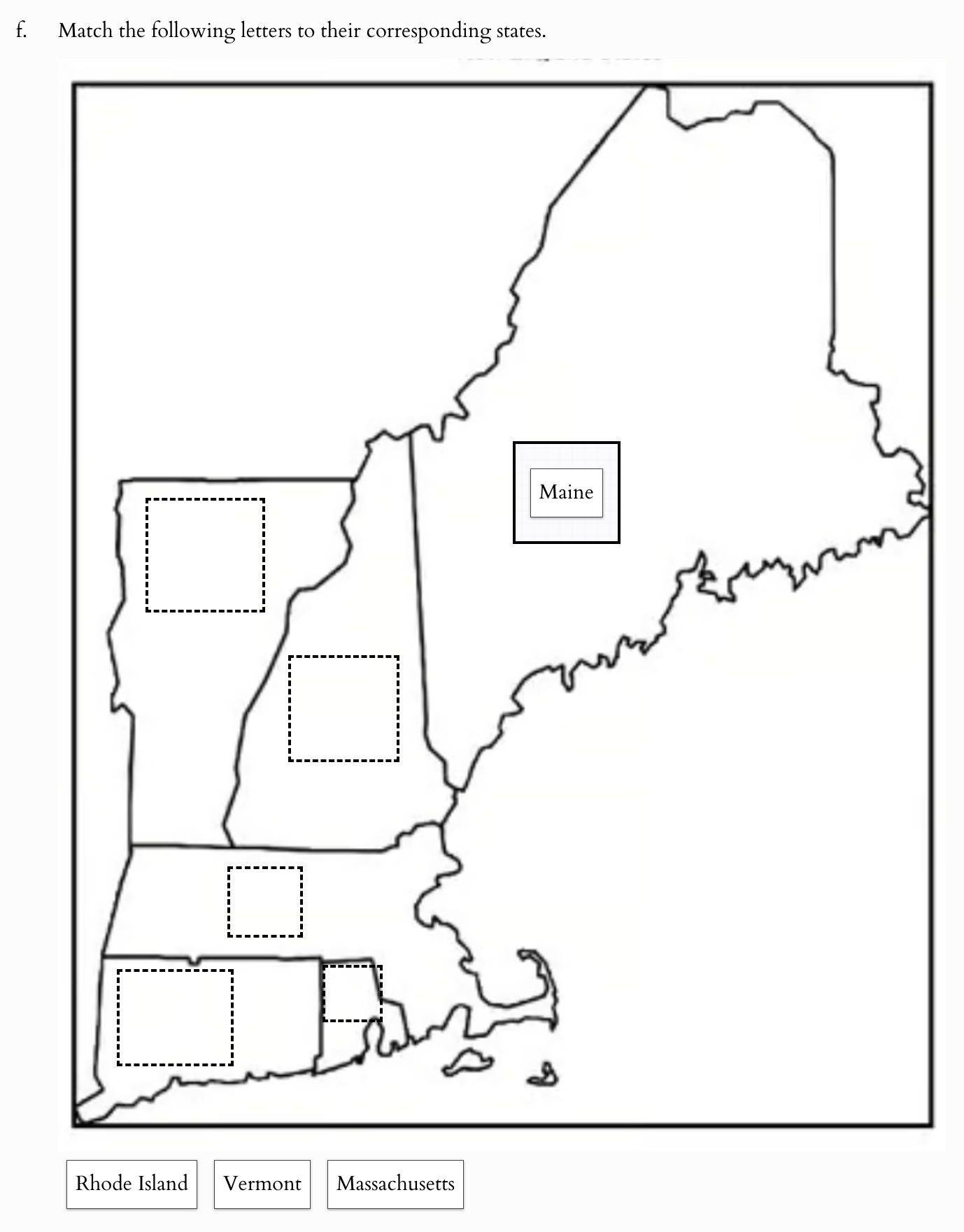

A label image part asks a student to match (drag and drop) a set of labels into designated areas within an image.
To add a Label Image part to a problem:
- Go to the problem.
- Select Add part and then select Label Image.
- Select Upload image.
- Use the Hotspot toolbar to add, remove, and delete hotspots within the image.
- Add responses by selecting the Add button and then specifying a response label and the correct answer.
- Preview the problem by selecting the Preview tab.
| Field | Description |
|---|---|
| Question | |
| Image | Image you want to use |
| Hotspots | You can create, move, and delete hotspots (rectangles or ovals) on the image as well as select the correct answer(s). |
| Image alt text | Image alt text for accessibility |
| Shuffle responses | Whether to shuffle response labels when displaying to the student |
| Allow duplicate responses | Whether to allow multiple labels to be mapped to the same hotspot |
| Solution | optional |
| Points | optional. Defaults to 1. |
